Machining Capabilities
Huayao Machinery provides stable, high-precision machining with Swiss-type turning, CNC turning,
machining centers and integrated process control – from prototypes to long-term series production.
Capability Overview
• Diameter Range (bar stock): Ø3–65 mm
• Max Length: ≤ 300 mm
* Range may vary depending on part geometry and process plan
• Carbon Steel
• Alloy Steel
• Stainless Steel (304 / 316 / 420, etc.)
• Brass
• Aluminum Alloys
• Turning tolerance up to ±0.005 mm
* Actual tolerance depends on size, material, geometry and inspection method
Need a fast feasibility review?
Send us your drawings (PDF / STEP / DWG) with quantity and material details.
Our engineering team will review manufacturability and provide quotation feedback within 24 hours.
Core Processes

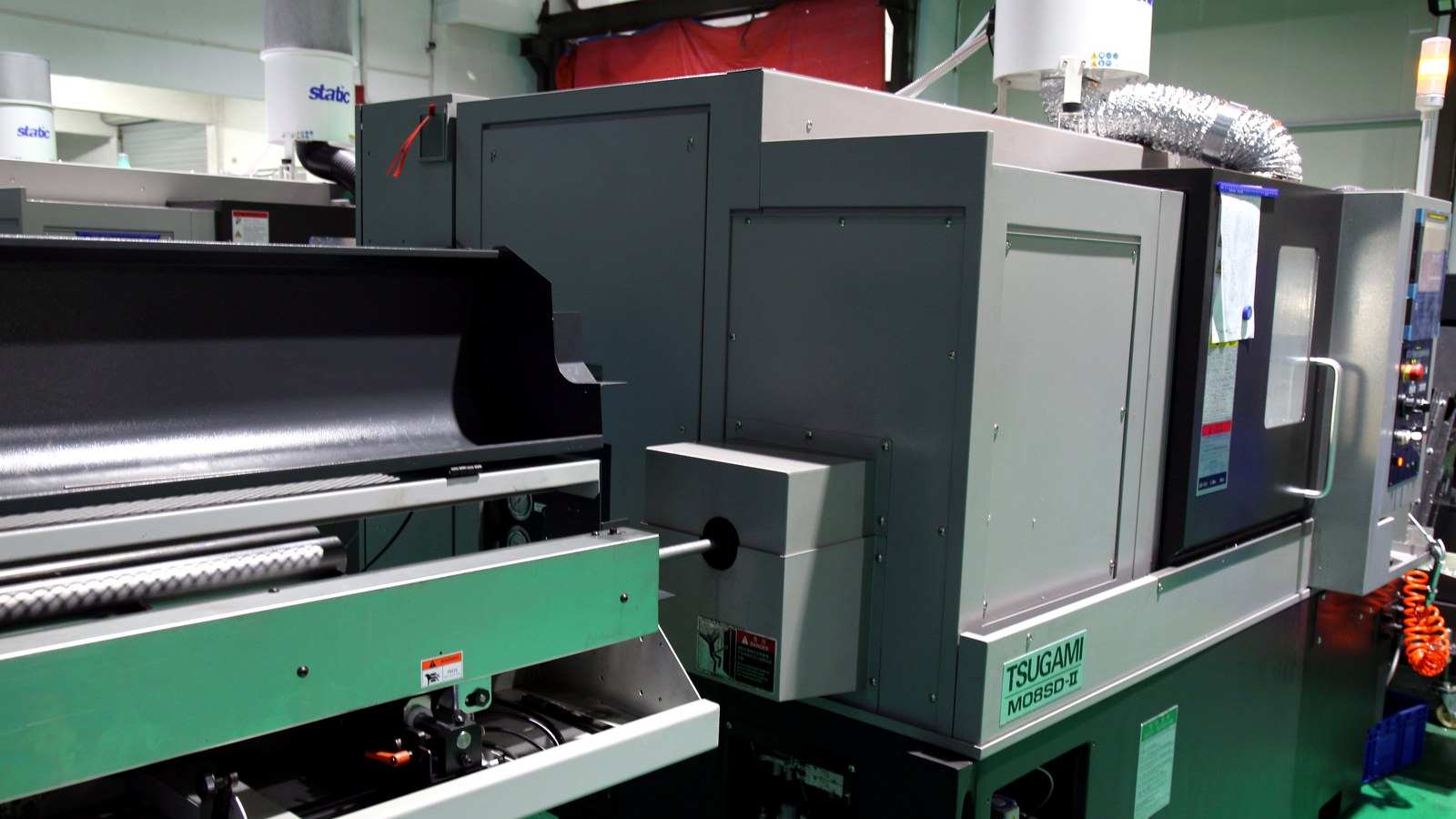

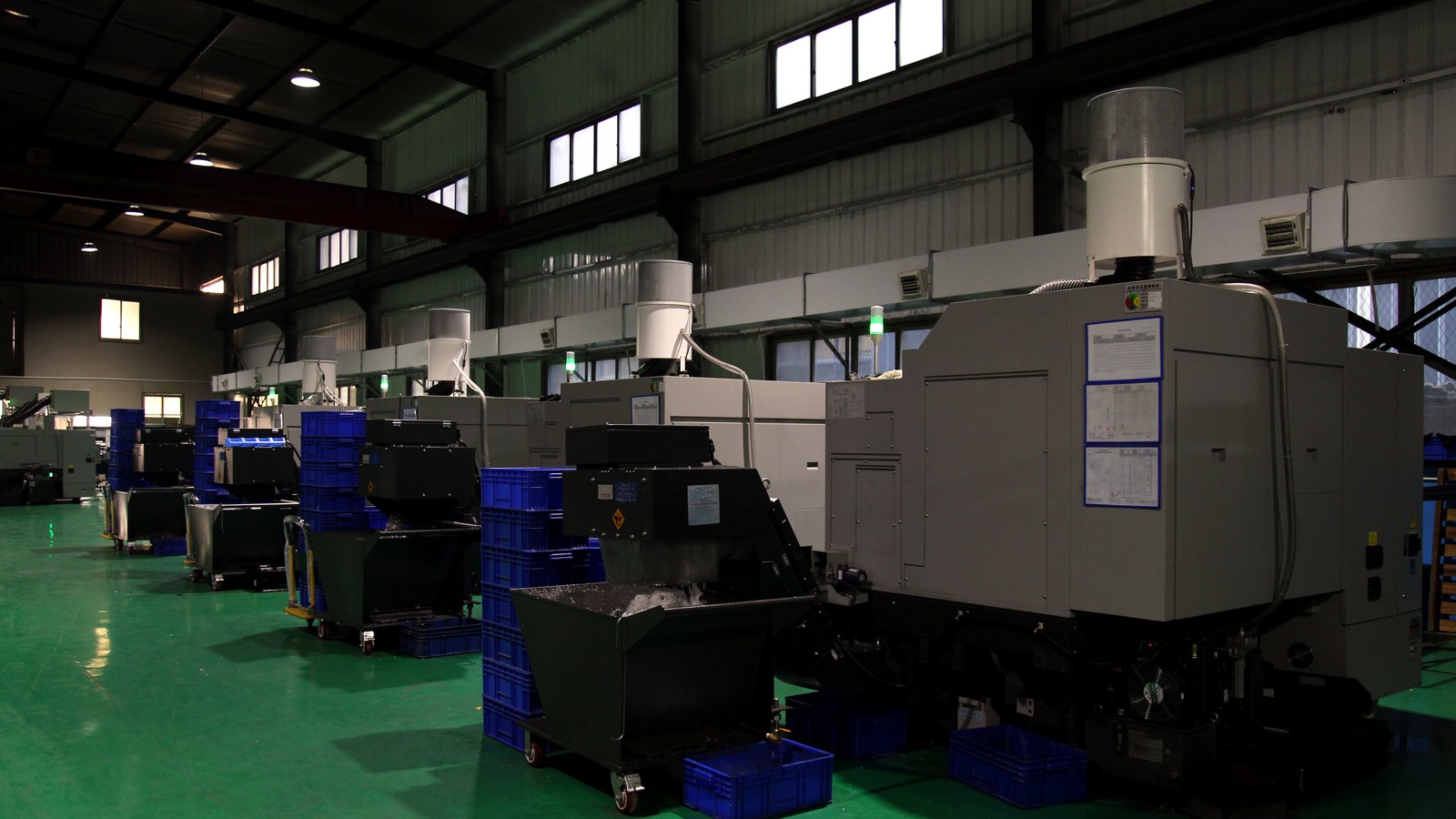

Precision turning for shafts, pins, sleeves and connector parts, with stable dimensions and
continuous batch capability.

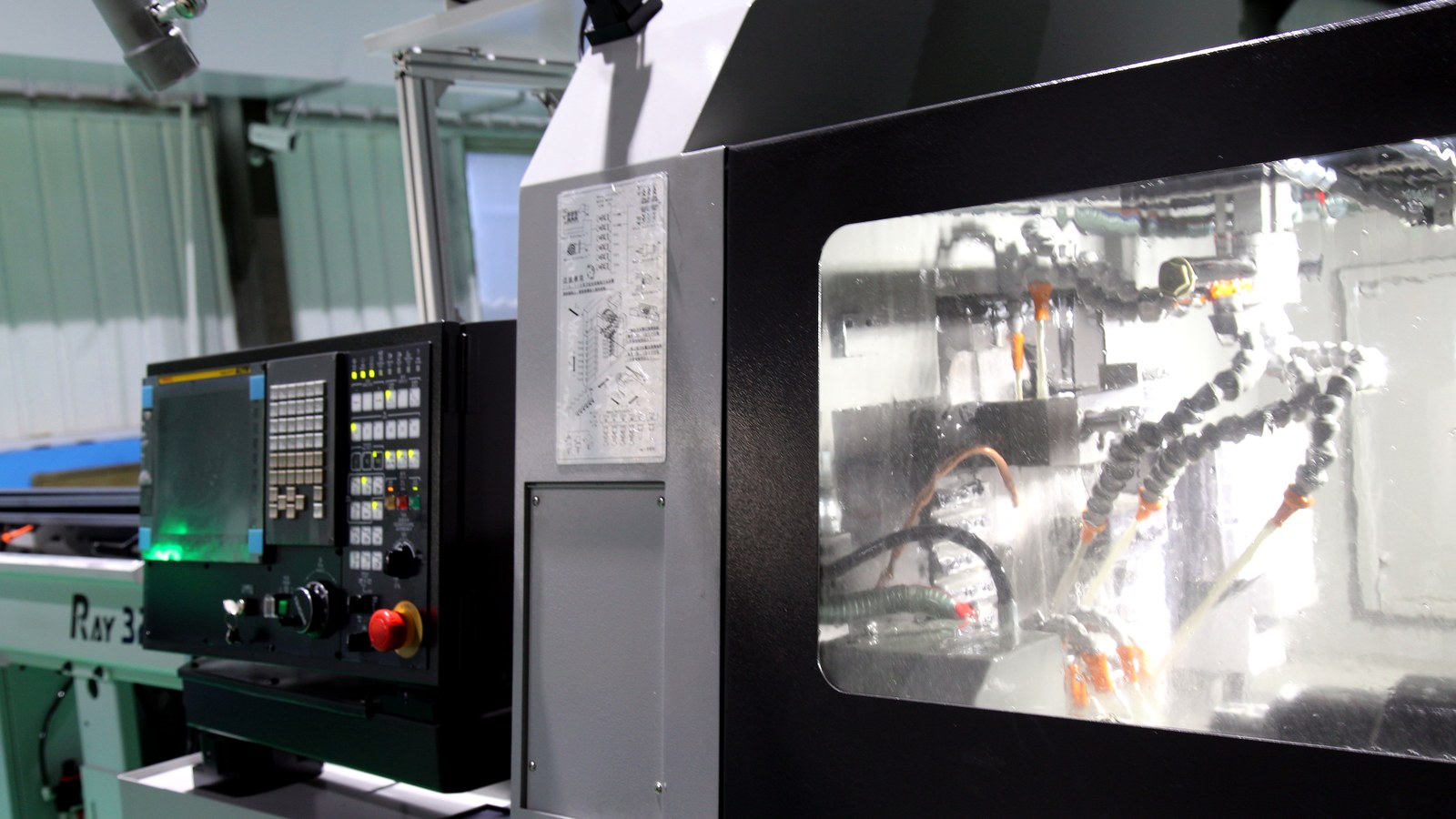

Milling, drilling and contouring for aluminum, stainless steel and alloy parts,
handling tight tolerances and complex geometries.

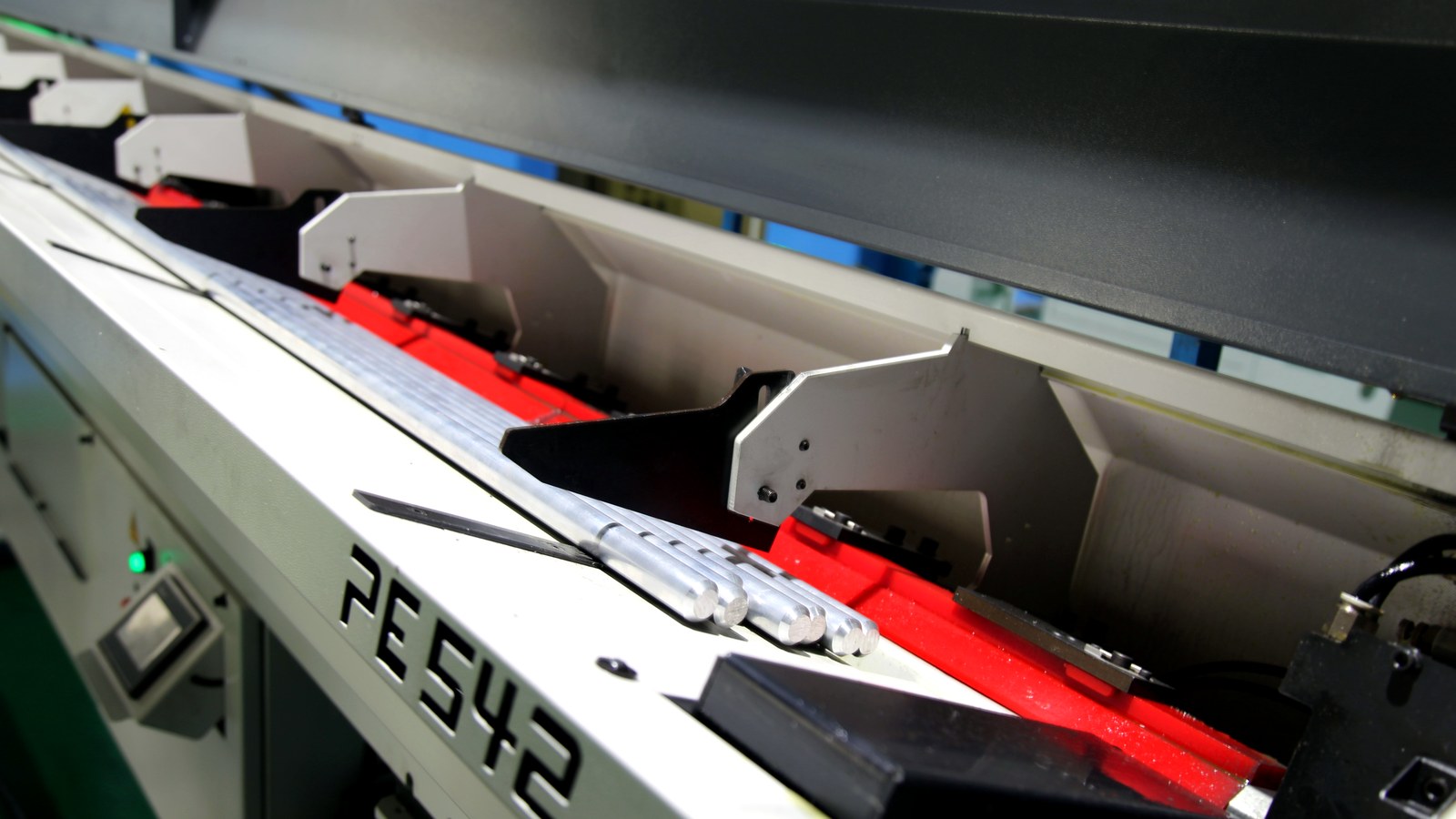

Turning, milling and drilling in one setup to reduce changeovers, improve efficiency
and support complex high-mix parts.

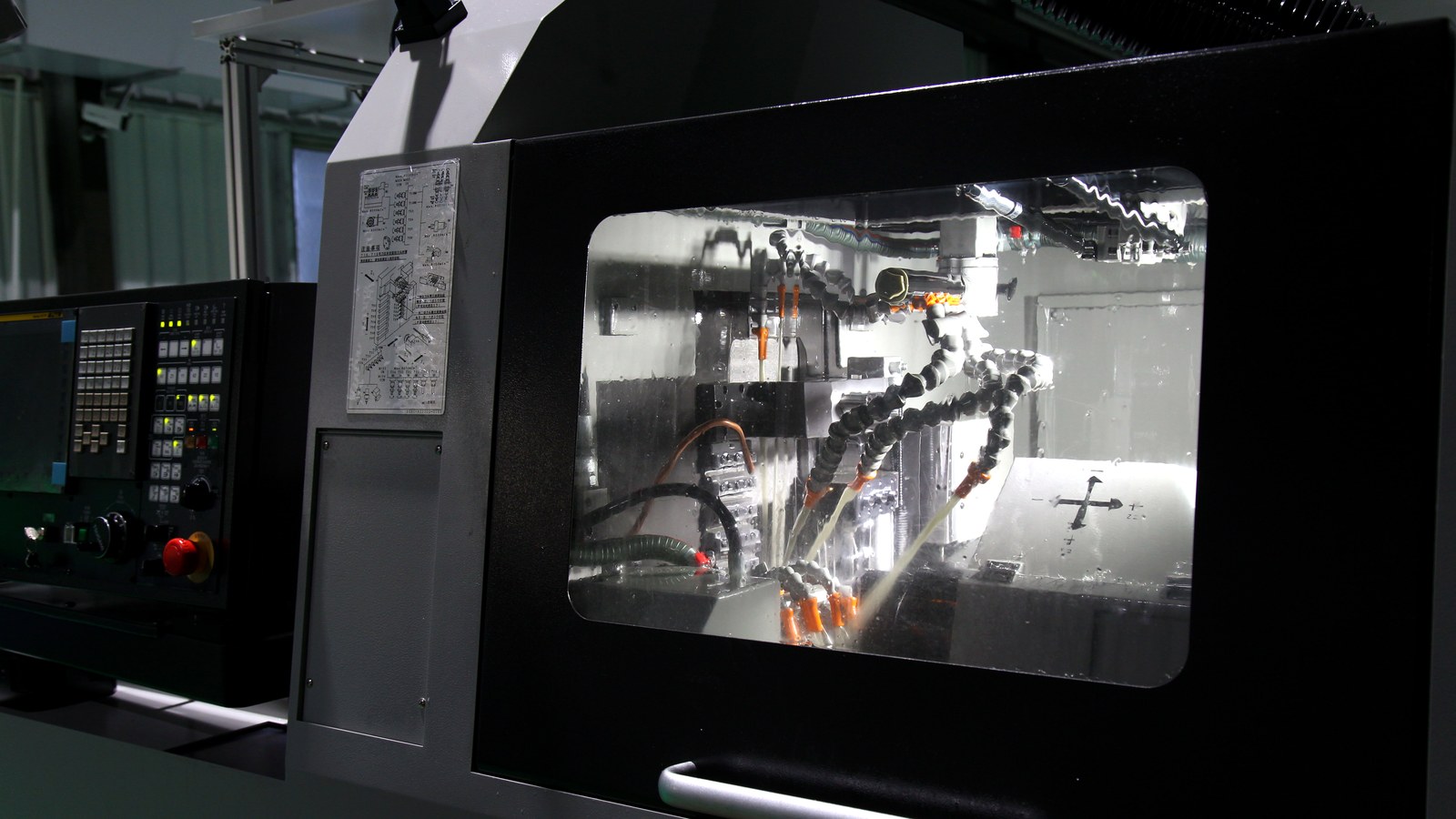

Flexible capacity from samples and pilot runs to long-term volume supply,
with planned output and stable lead times.
In-process and final inspection with proper gauges and records,
ensuring traceability and consistent quality.

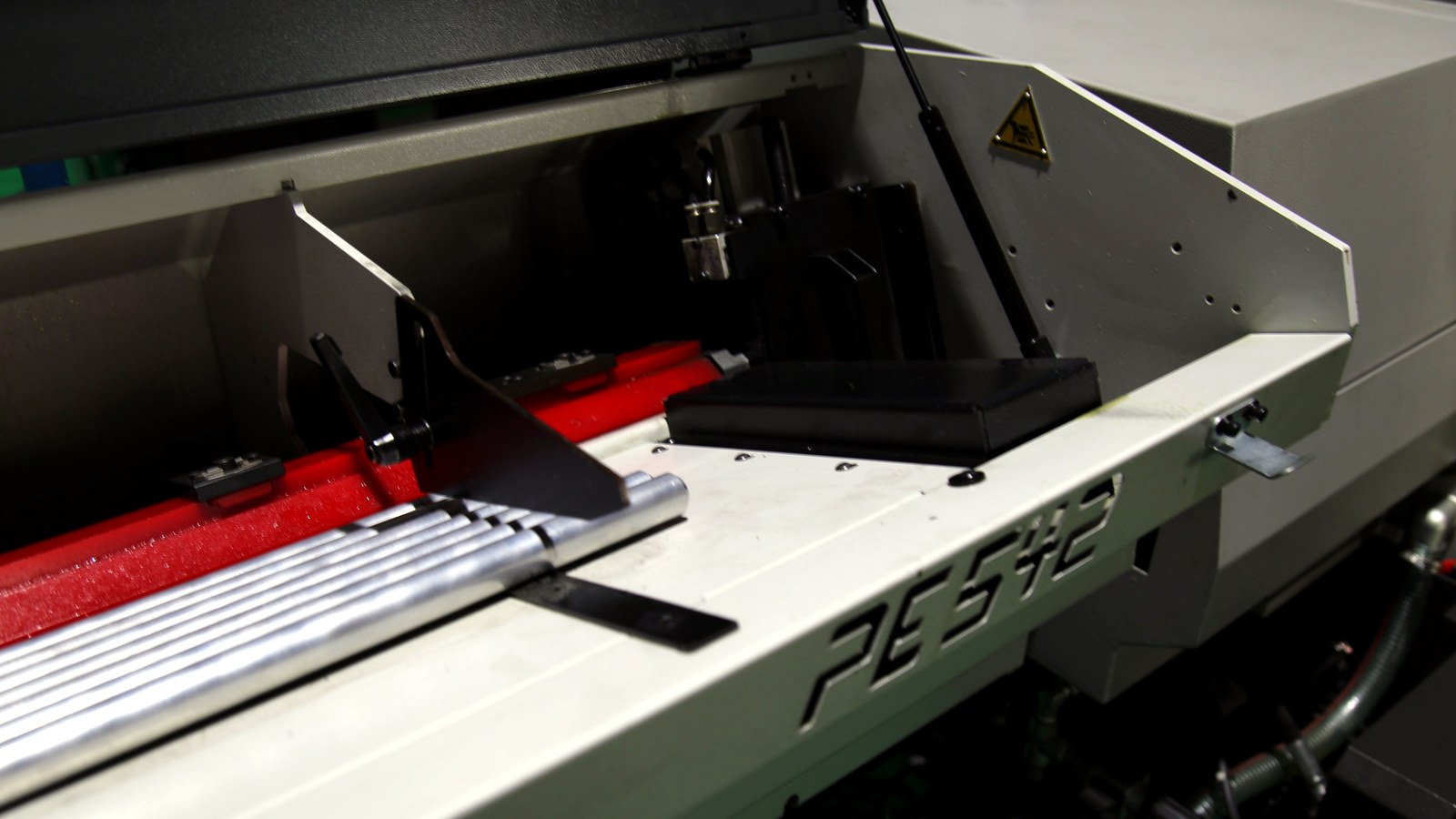

Controlled workflow from incoming material to shipment, suitable for
long-term and scheduled deliveries.
Key Equipment & On-Site Capability

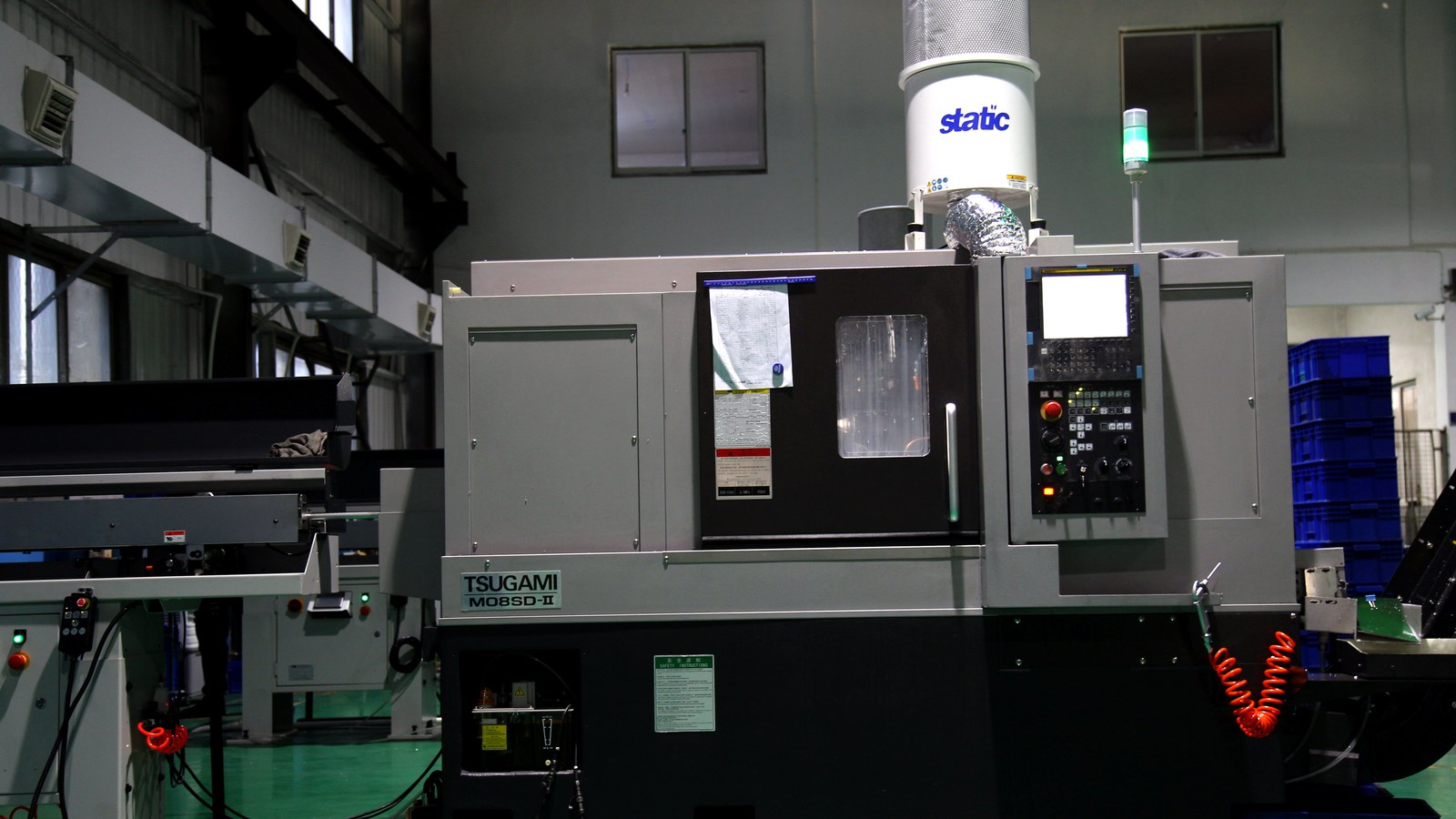

Multi-face and multi-station machining in one clamping to improve efficiency
and positional accuracy.

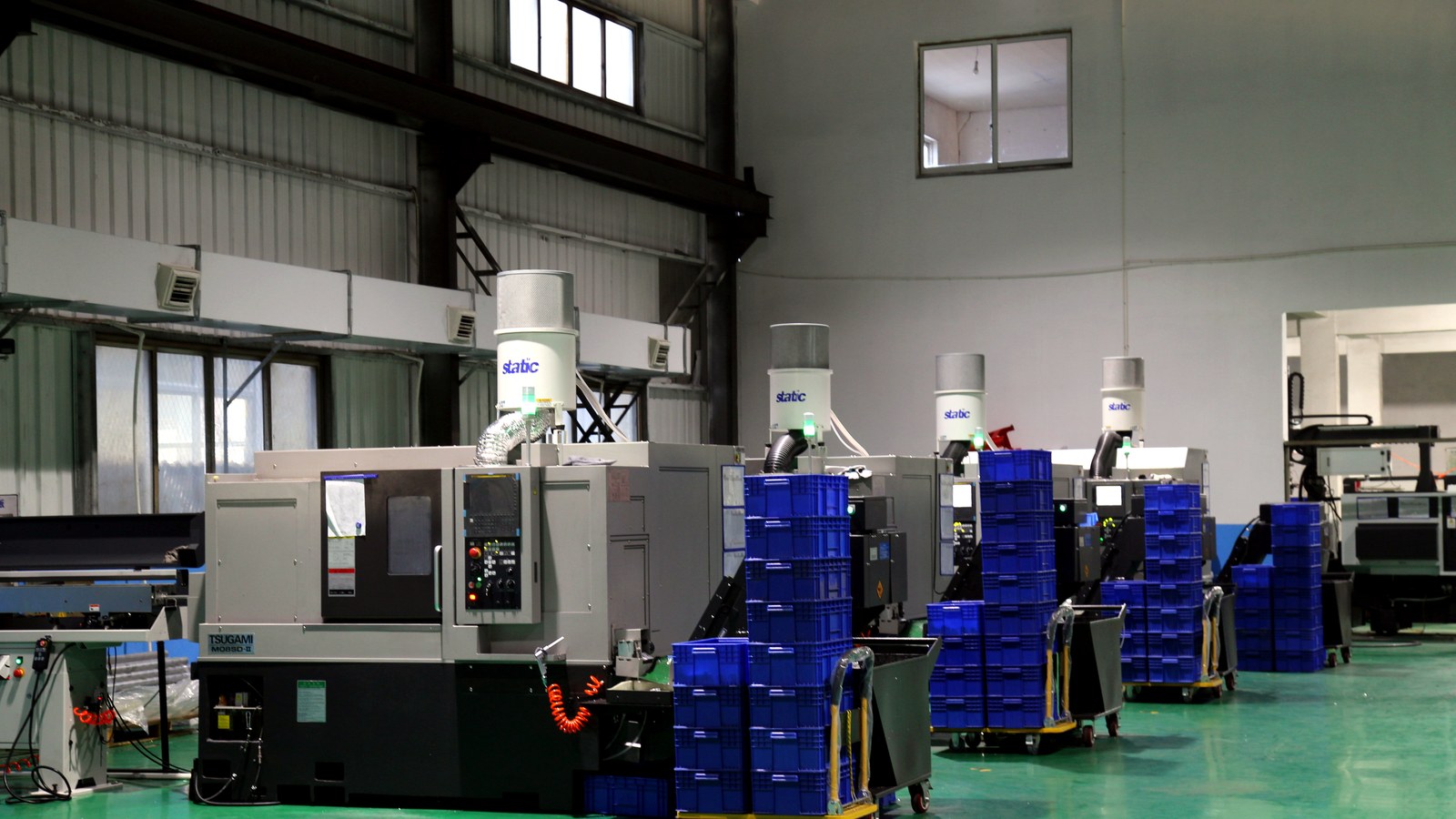

Workholding and layout reserved for automatic loading and robotics,
supporting future capacity upgrades.

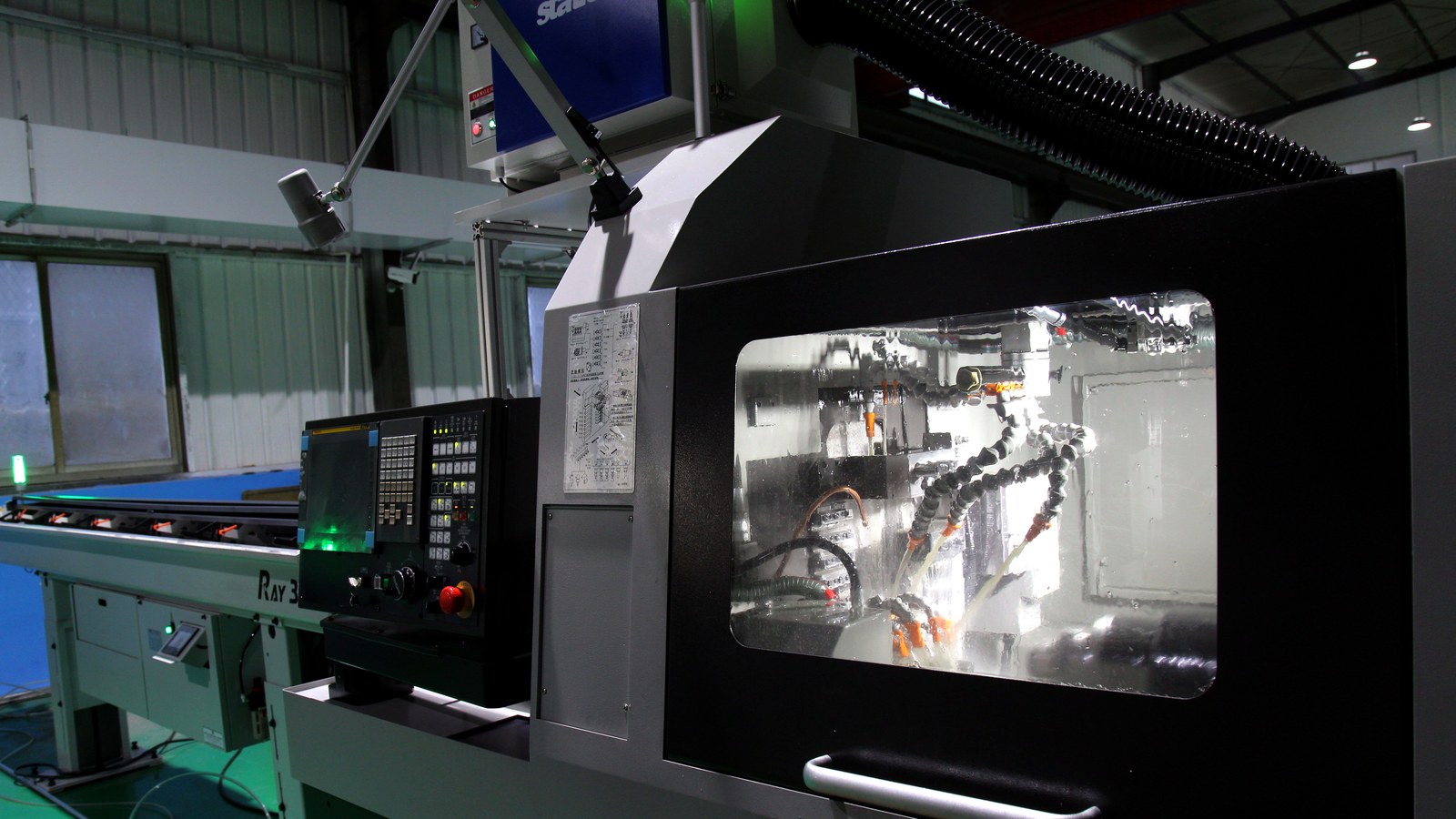

Ability to organize dedicated machining cells or mini lines for key programs,
enhancing throughput and quality stability.
Inspection & Laboratory

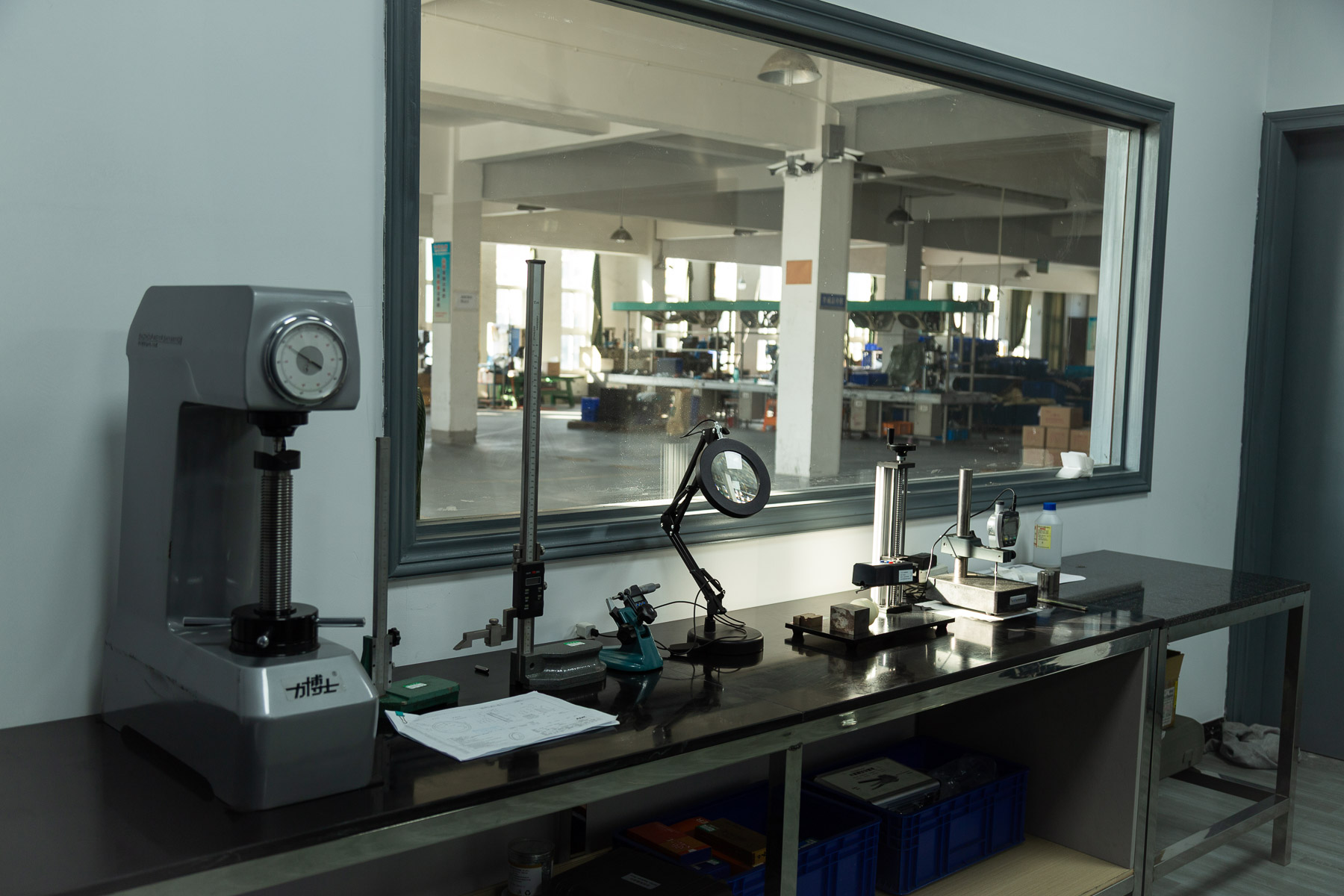

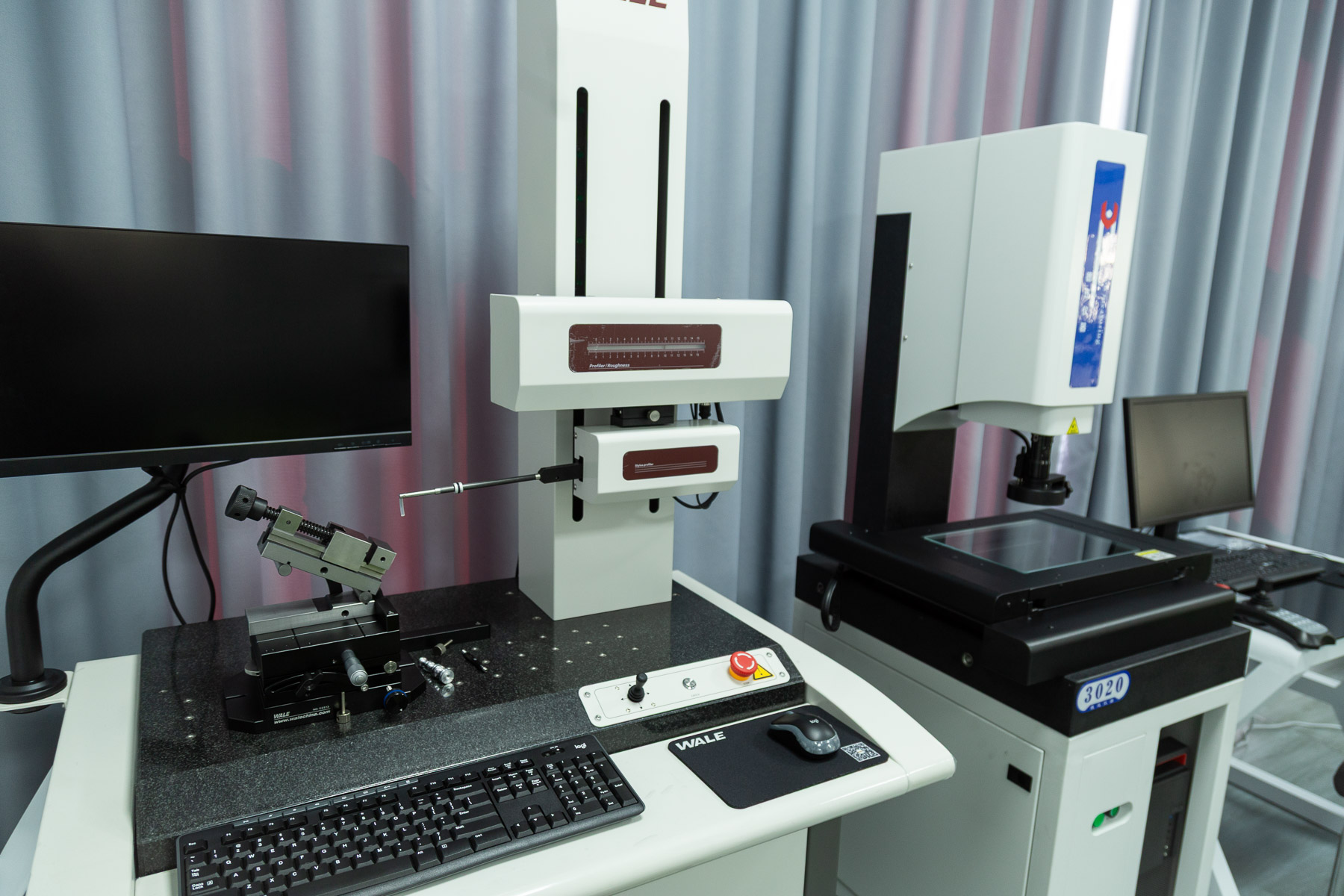

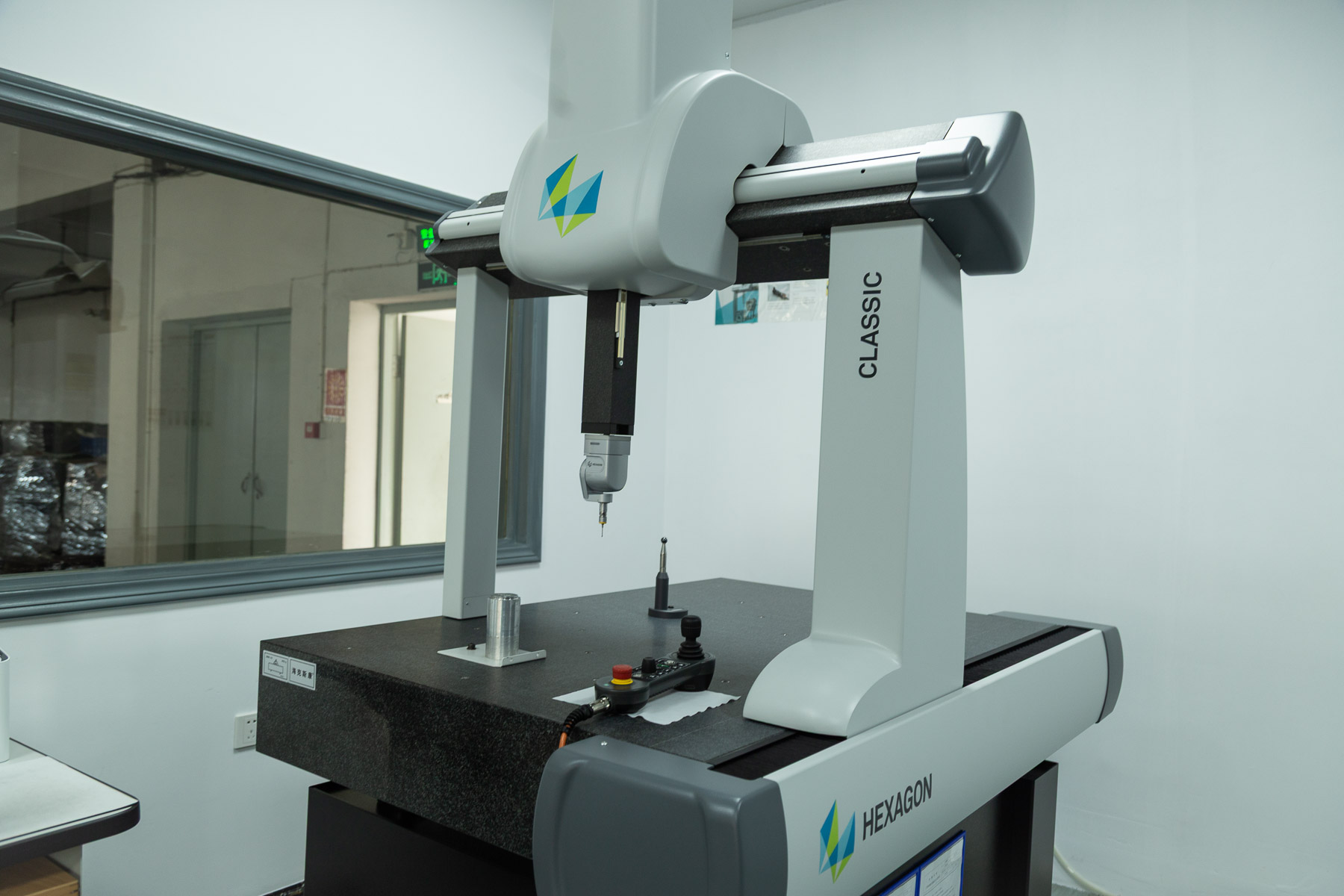

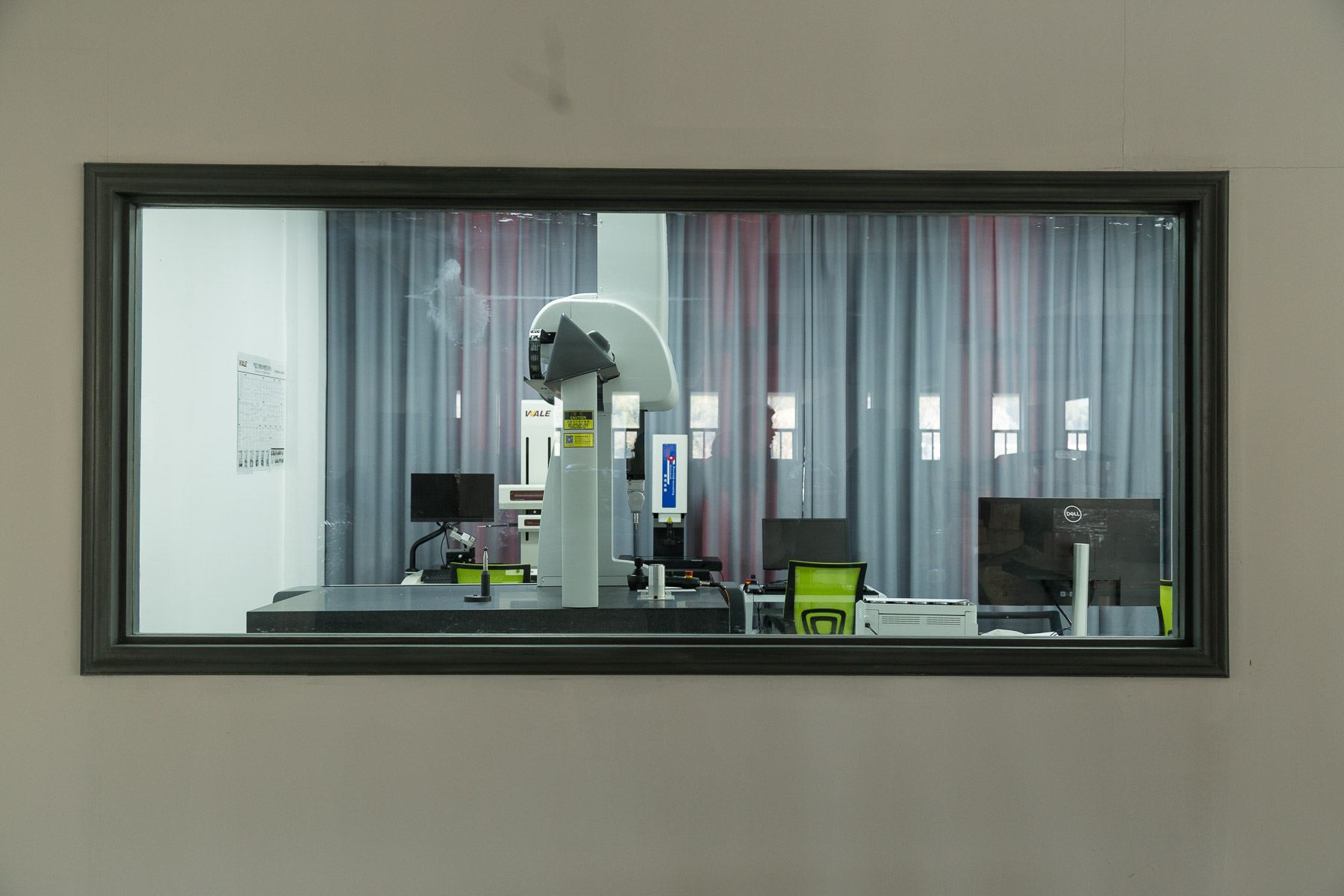

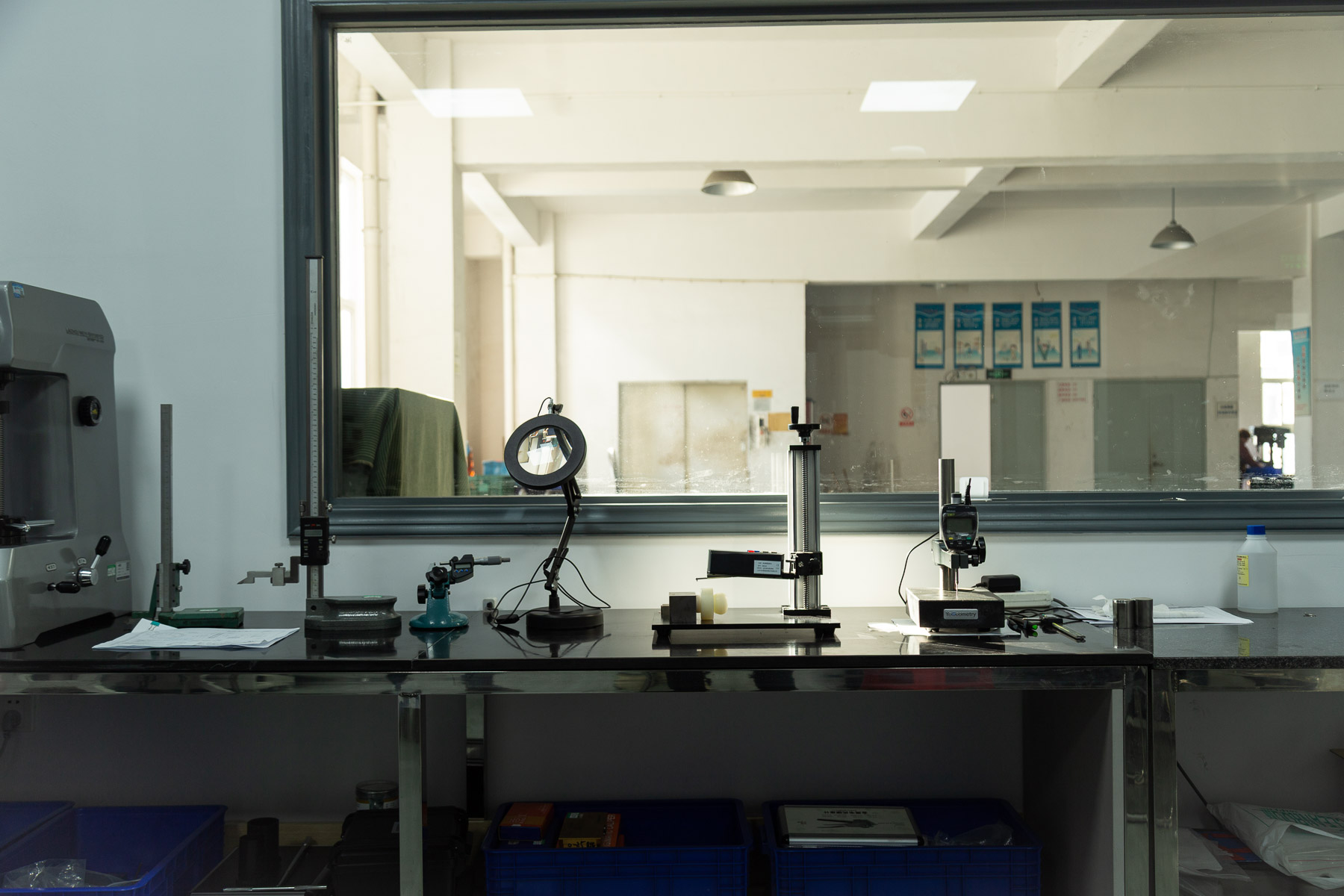

Dedicated inspection lab with CMMs, optical measurement and microscopes in a controlled
environment to ensure consistent, traceable quality for every project.
